Greenhouse Air Inflation Kit

 Reduce Condensation with this Air Inflation kit!

Create an insulating space of air between two layers of greenhouse plastic using this air inflation kit. Easily attach this kit to your hoop house, install a second layer of plastic, and inflate the air between the layers creating an insulated space.

Features

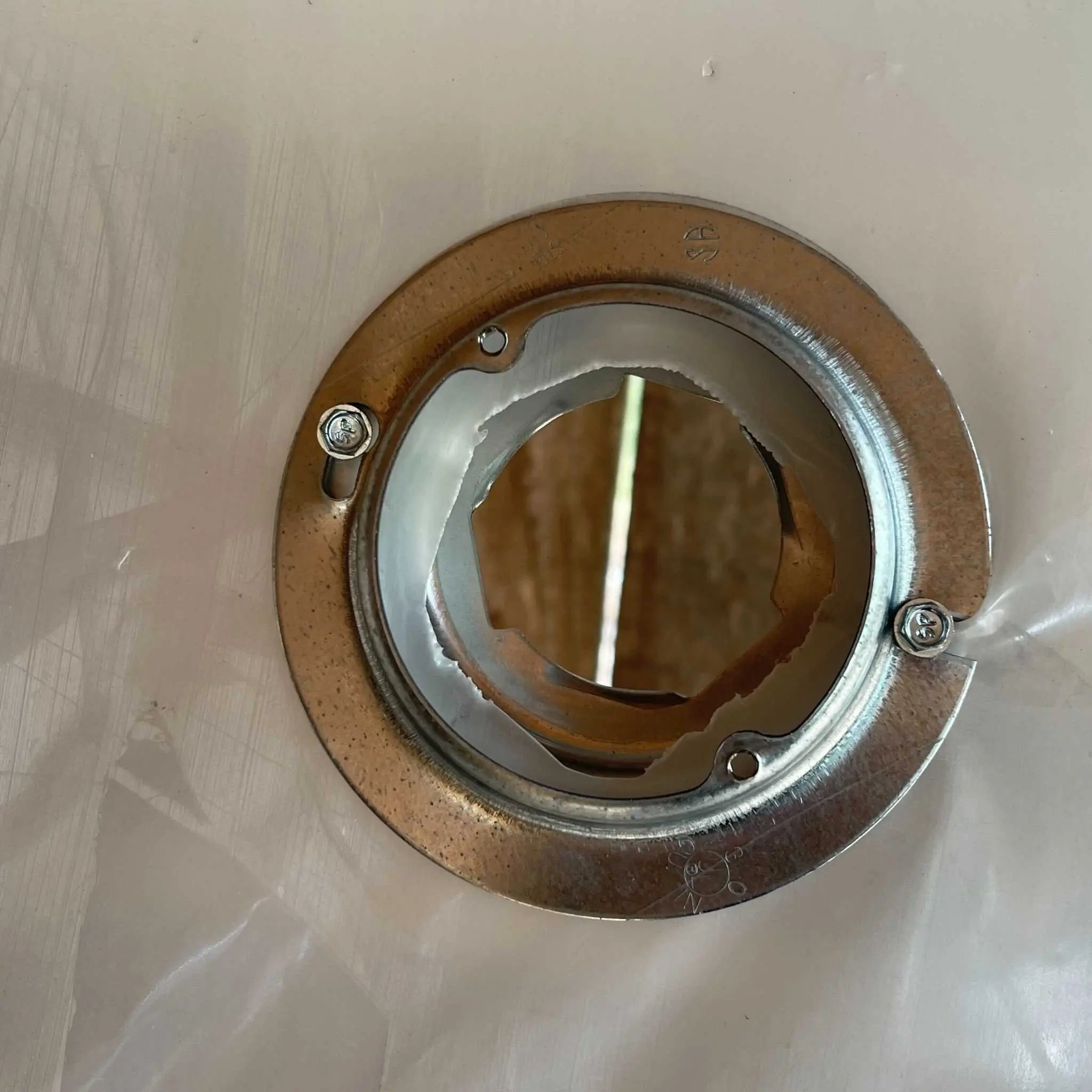

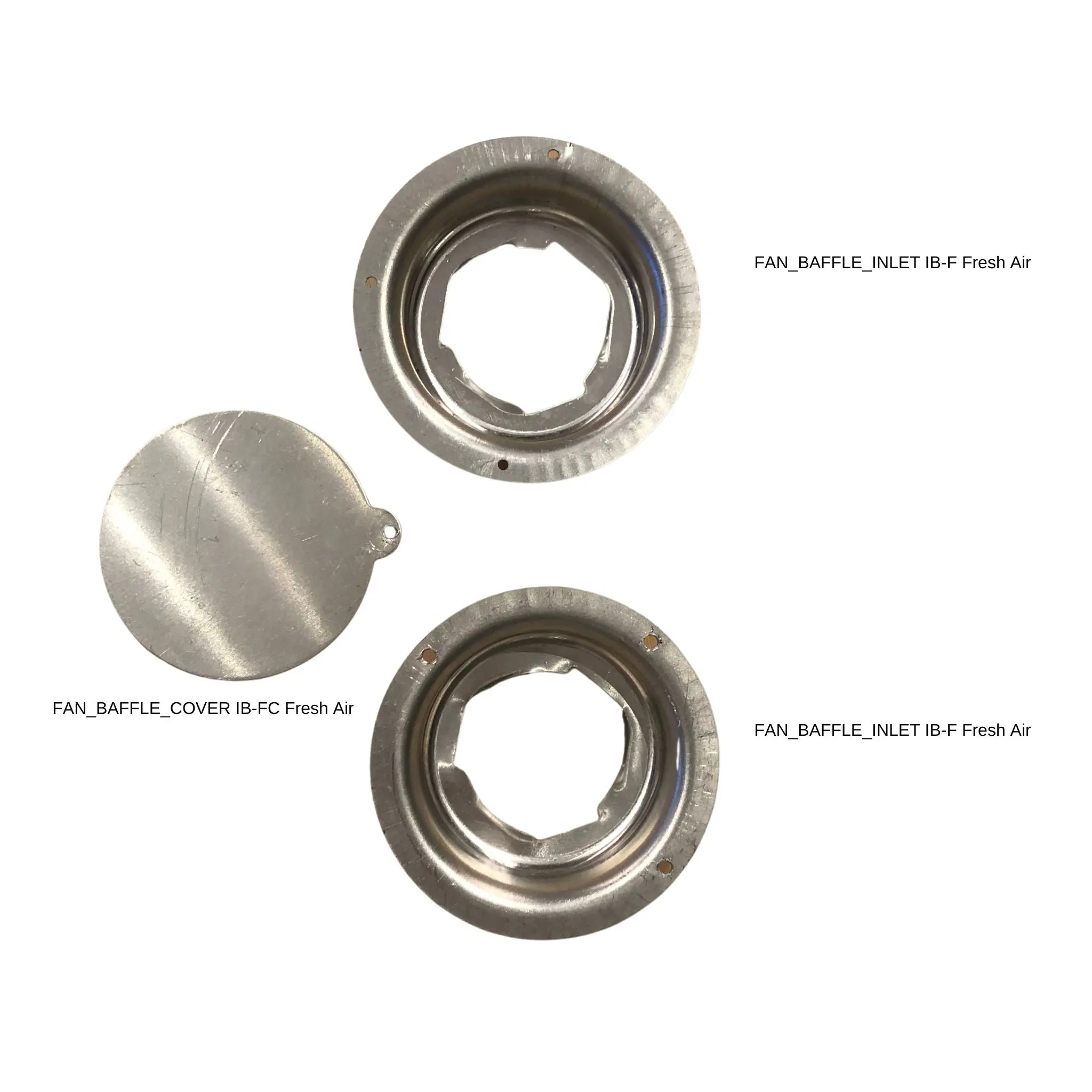

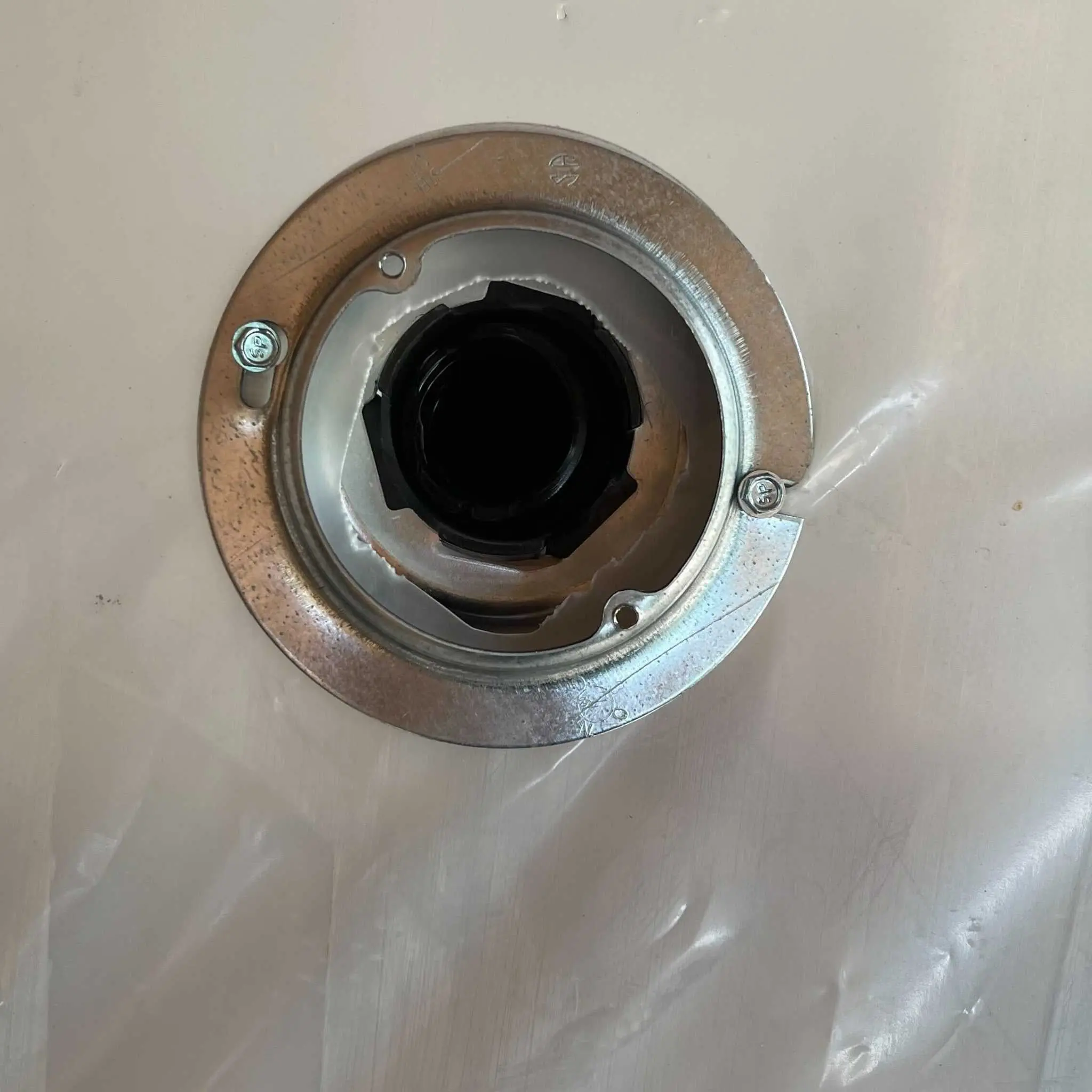

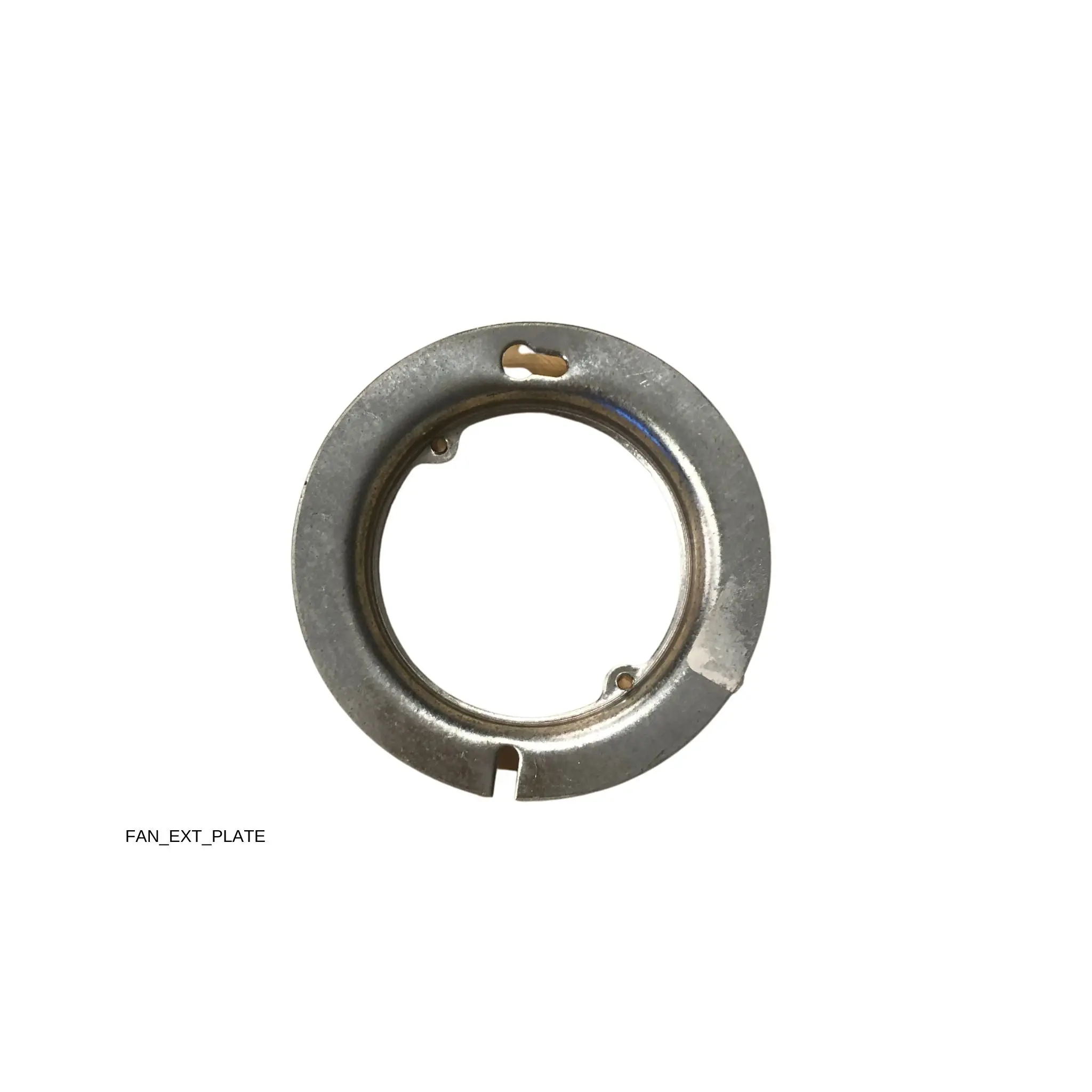

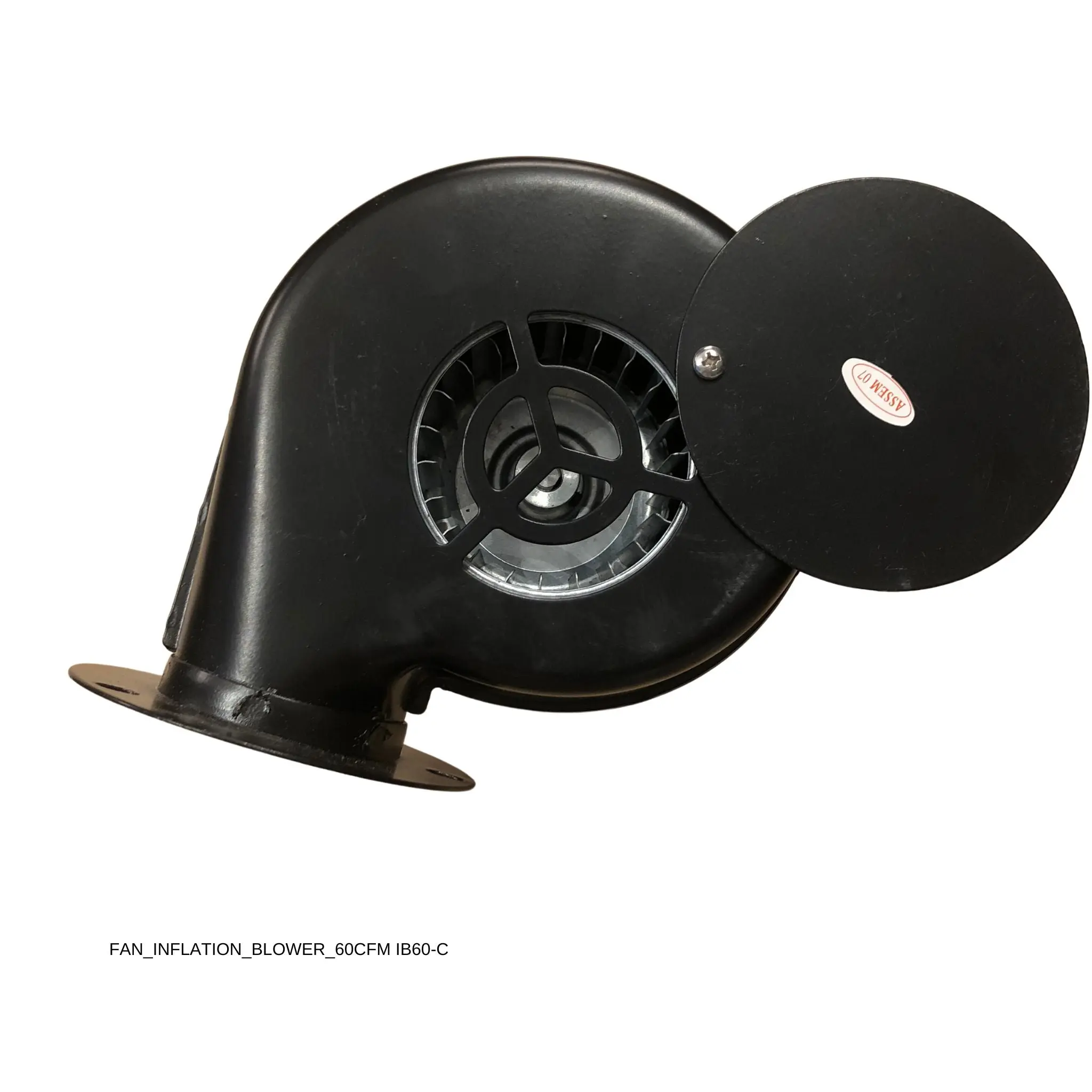

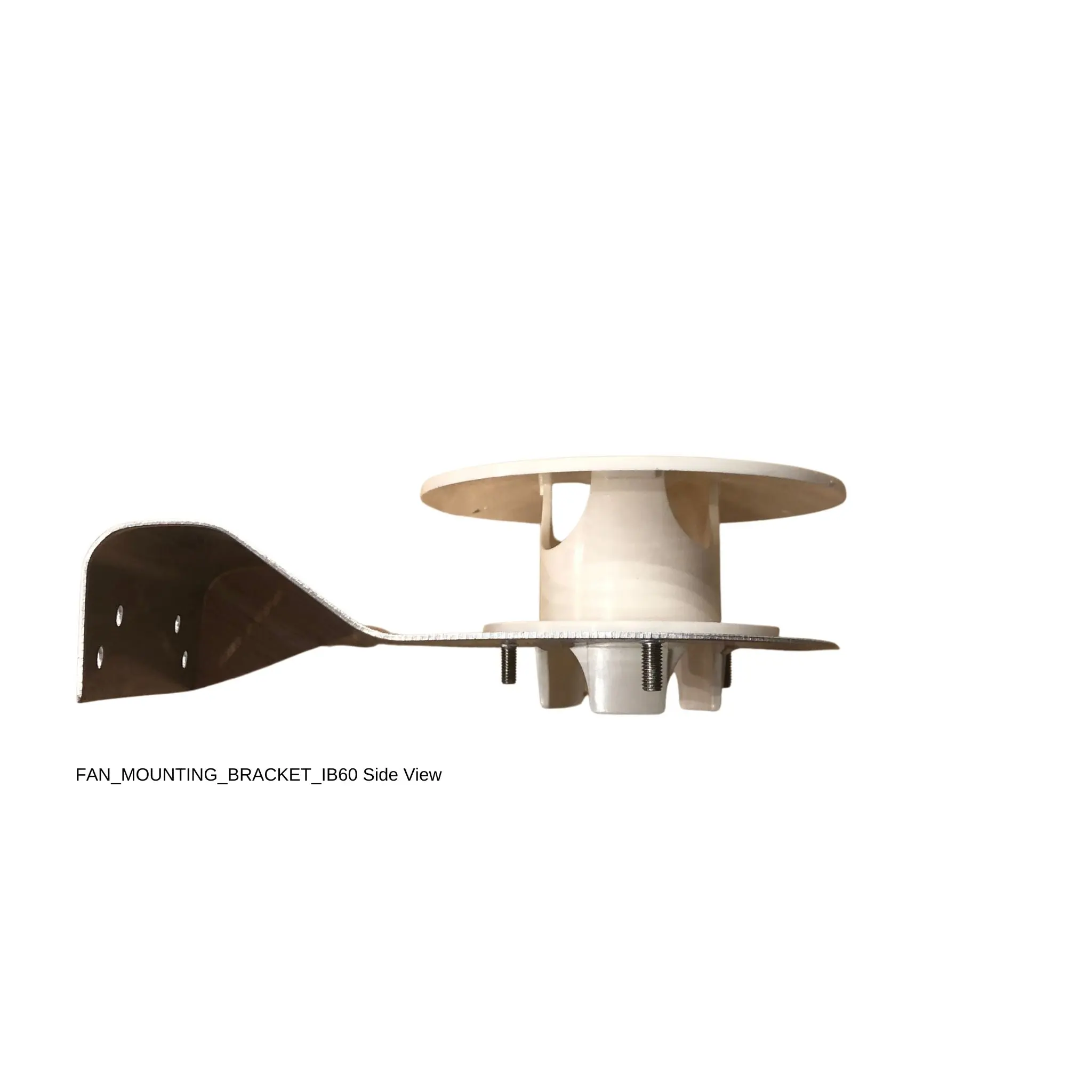

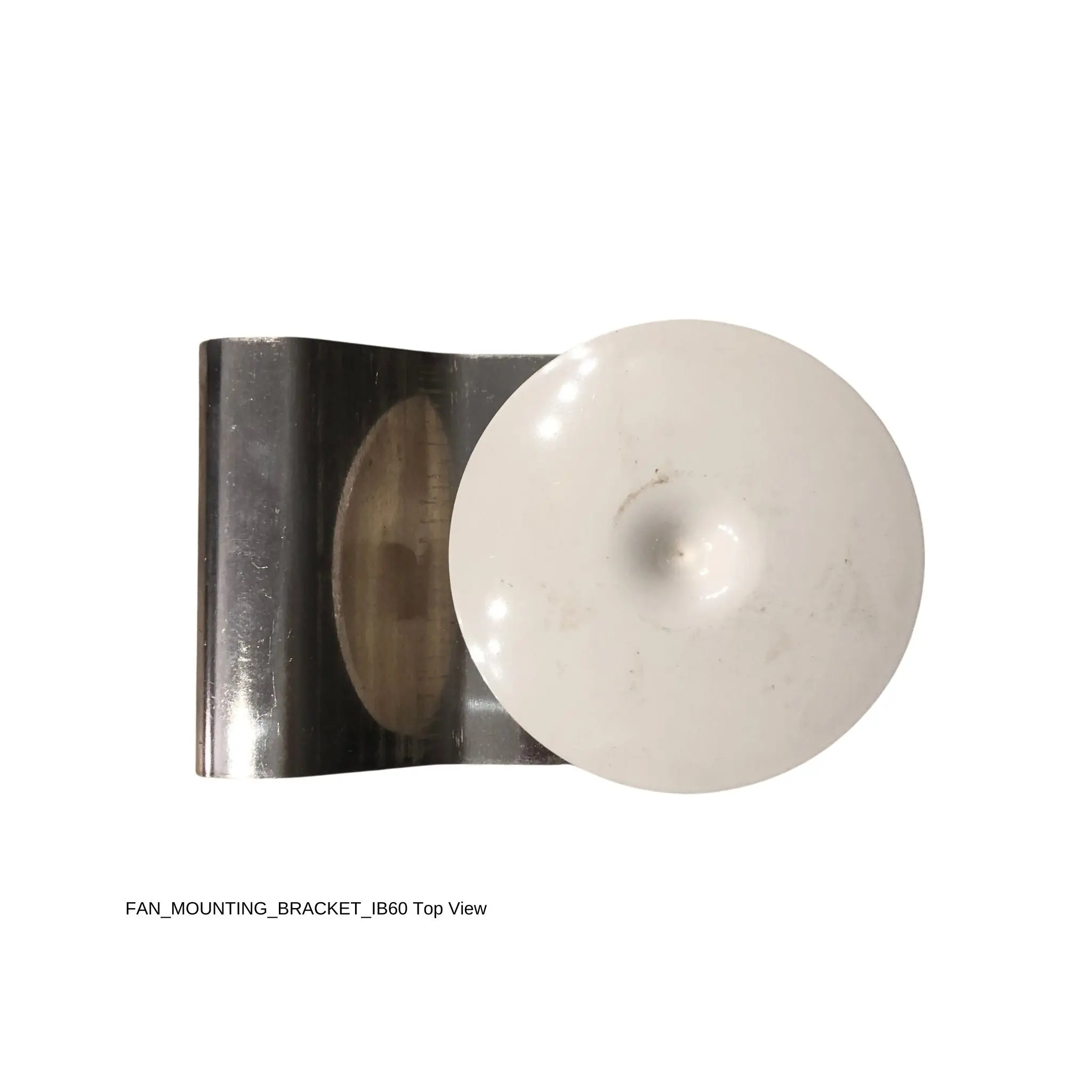

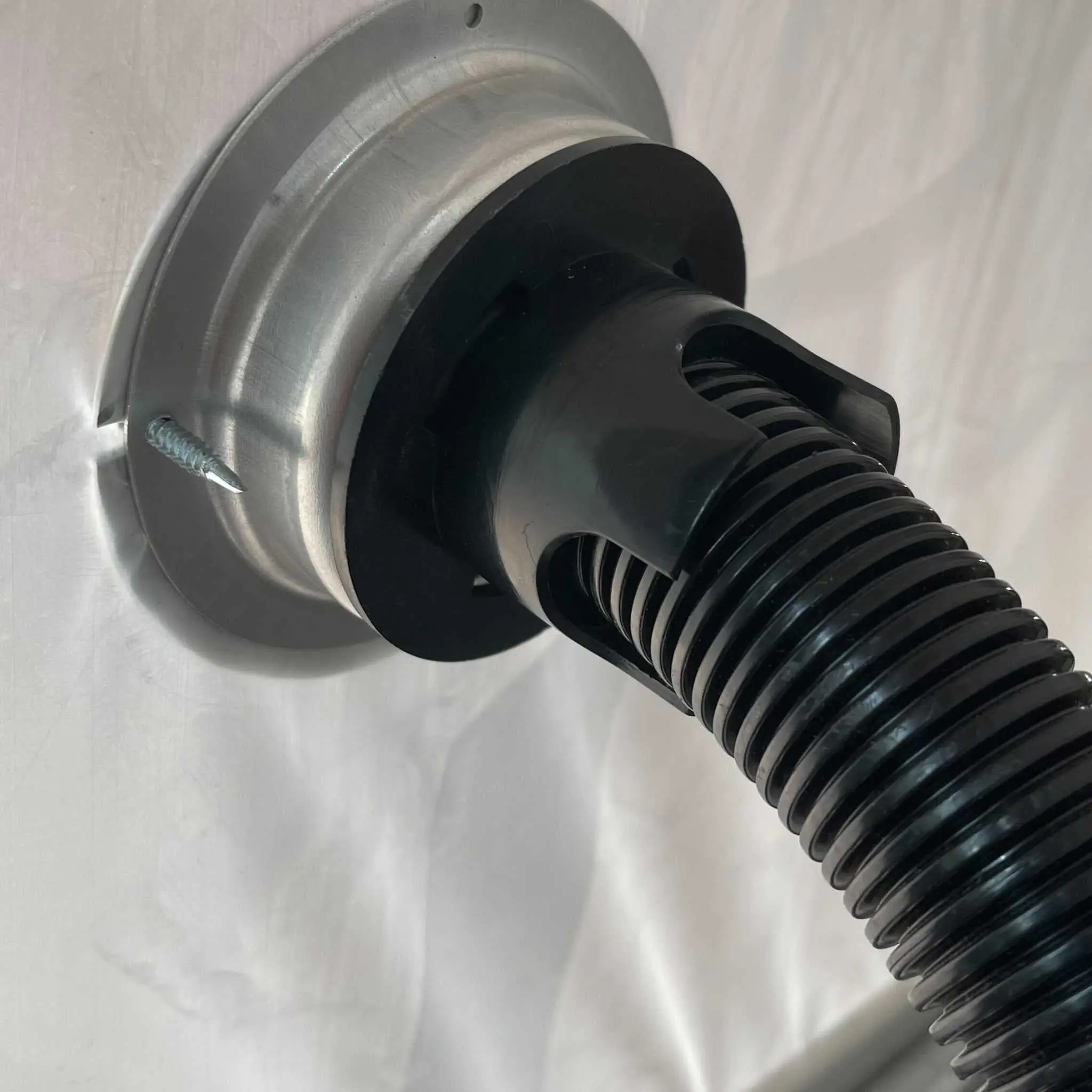

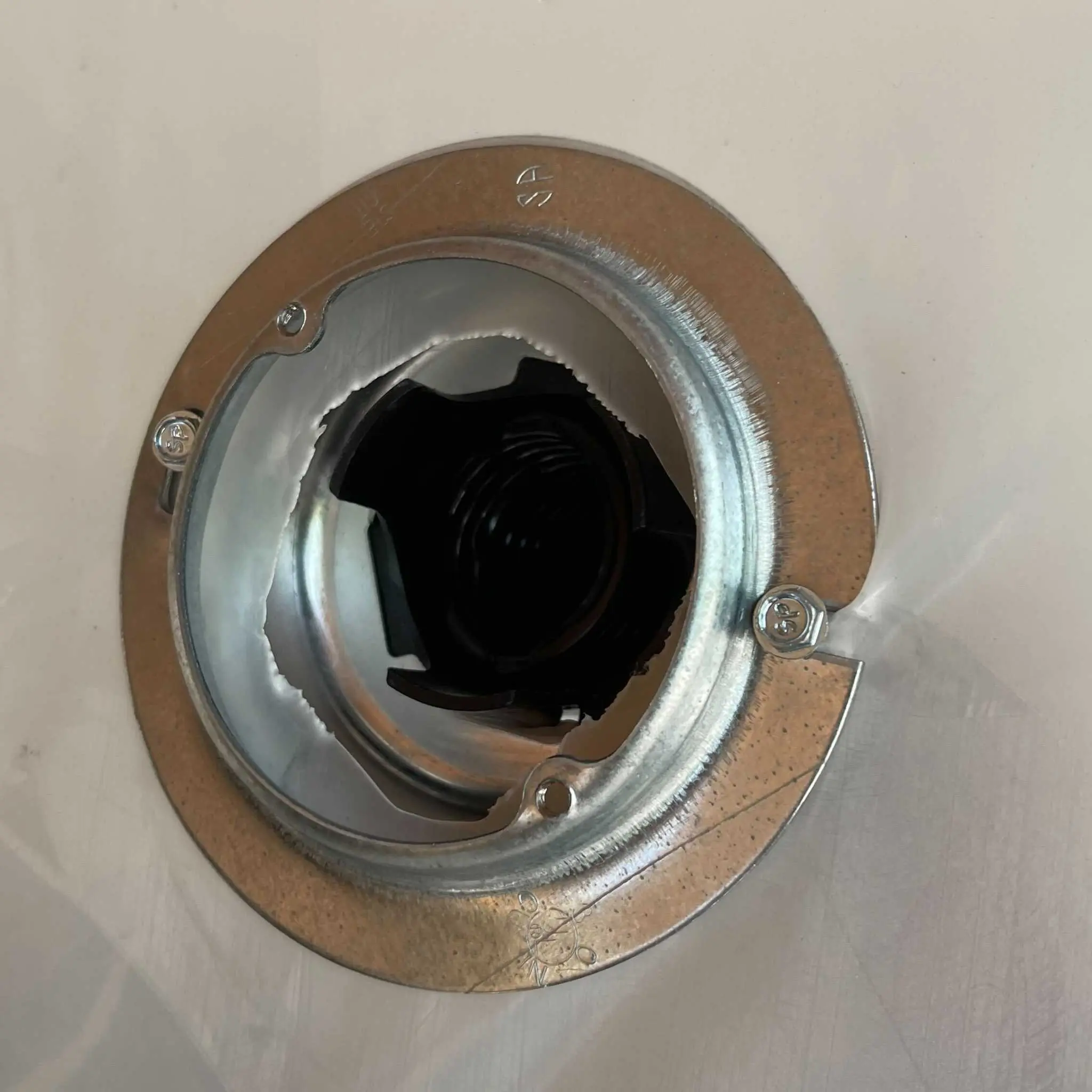

• Includes 60 cfm blower, exhaust air deflector, mounting bracket, 72" inlet air hose, inlet damper/air regulator
• Includes detailed instructions
• Reduces condensation
• Operates at 110 volts, pulling 0.42 amps.
• Creates insulated space between two layers of plastic
• PDF instructions
• Note: We recommend that you use air from the outside, which is less humid, reducing condensation.
• Note: This fan lacks a plug. Many growers hardwire them in, but a plug can easily be attached. Consult a licensed electrician if this is something you are not comfortable doing.



Sizing the Second Sheet of Plastic

Greenhouse (W)(L)	2nd Layer (W)(L)
14', 20'	32', 30'
14', 40'	32', 50'
14', 60'	32', 70'
14', 80'	32', 90'
14', 100'	32', 110'
14', 150'	32', 160'
20', 20'	40', 30'
20', 40'	32', 50'
20', 60'	32', 70'
20', 80'	32', 90'
20', 100'	32', 110'
20', 150'	32', 160'
30', 20'	54', 30'
30', 40'	54', 50'
30', 60'	54', 70'
30', 80'	54', 90'
30', 100'	54', 110'
30', 150'	54', 160'
